POSEIDON OFFICE / INDUSTRY
WIRELESS CONTROL SYSTEM FOR COMMERCIAL BUILDINGS, INDUSTRY AND LOGISTICS
EFFICIENT LIGHTING CONTROL WITHOUT UNNECESSARY CABLING
The POSEIDON system provides flexible wireless control of lighting and shading for building automation. It helps reduce energy consumption, ensure the required lighting conditions in accordance with hygiene standards, and create a comfortable and safe environment for employees. Thanks to its simple installation, it is suitable for new buildings, renovations, and subsequent upgrades, allowing control to be extended or modified without extensive interventions in the electrical wiring.
With Respect for Energy
The POSEIDON system is built on ENIKA’s own development and experience. It offers an efficient approach to lighting control that combines simple installation, rapid deployment, and high flexibility with an emphasis on low acquisition and operating costs.
Thanks to its flexibility, the system can be used far beyond typical lighting control applications. It enables, for example, wireless transmission of ripple control signals, use in access control systems, or measurement of temperature, humidity, and air quality in rooms.
In lighting control, it helps reduce electrical energy consumption as well as maintenance-related costs. At the same time, it helps ensure appropriate lighting conditions in accordance with hygiene standards and contributes to a comfortable and safe working environment.
Another advantage is the ability to control the system from locations where standard installation would be difficult or risky — for example, in wet areas, on glass surfaces, or on flammable substrates. The wireless solution thus expands installation possibilities even where standard cabling encounters practical limitations.
From Reliable Transmission to Comprehensive Control
Reliable signal transmission is ensured by communication at a frequency of 868.3 MHz, repetition of the transmitted code, and two-way communication secured with a rolling code.
POSEIDON is designed with an emphasis on simple installation and rapid deployment. As a result, electrical installation companies do not require special training to install it.
The wide portfolio of components allows the system to be adapted to a specific project. It includes portable and wall-mounted transmitters in various designs, receivers for DALI, 0–10 V and relay control, lighting controllers, and sensors for motion detection and for measuring illuminance, temperature, humidity, or CO₂ concentration. This makes it possible to address not only lighting control within a single system, but also other requirements for comfortable and efficient operation of buildings and premises.
One Solution for Various Types of Buildings and Facilities
Its wide range of applications makes the POSEIDON system a solution for commercial buildings, industrial and logistics facilities. It allows control to be adapted to the specific needs of the space and its users – with an emphasis on energy savings, safe and comfortable operation, and simple control. The wide range of components and their modern design also make it easier to integrate the system into various types of interiors.
Want to know more? Get in touch.
Why Our Solution Is Unique
868 MHz FREQUENCY
Reliable signal transmission even through obstacles, unaffected by interference from Wi-Fi, mobile networks, or industrial machinery.
OUR OWN SWITCHES
You can install the wireless controllers almost anywhere — on glass, flammable substrates, and even in wet areas (IP68).
NO CENTRAL CONTROL UNIT
The system operates without dependence on a central unit. The failure of one component does not affect the rest of the installation.
MUTUAL COMPATIBILITY
Switches, receivers, sensors (motion, light, temperature, humidity, CO₂), dimmers, and software – all system components from a single manufacturer. Responsibility for the solution rests in one place.
INTEGRATION WITH BMS SYSTEMS
POSEIDON easily integrates with other building systems. Lighting and shading control thus becomes part of the entire infrastructure, rather than an isolated solution.
CZECH SOLUTION
Czech development, manufacturing, and support directly from the manufacturer.
Get in touch with us.

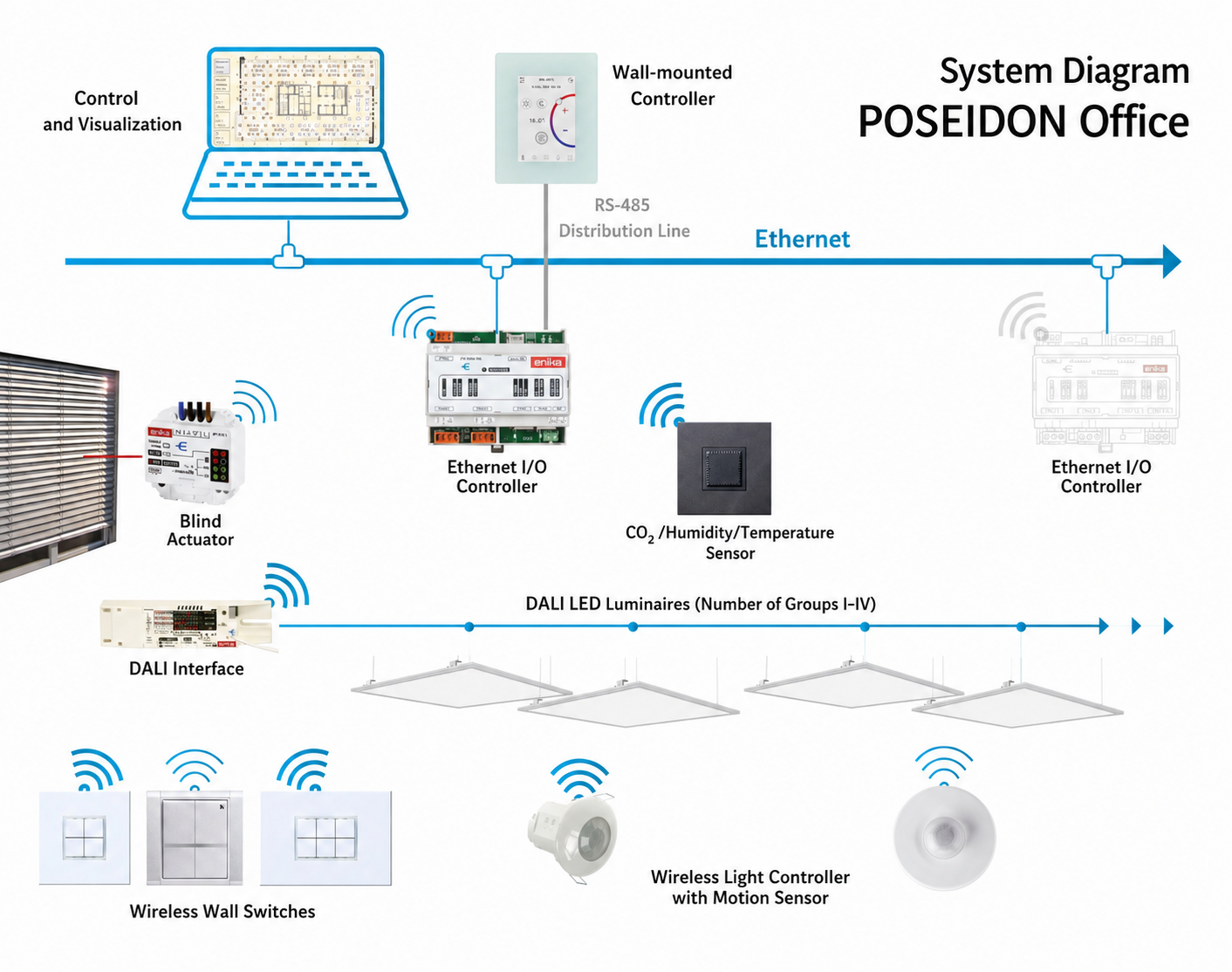

What Makes Up the POSEIDON System
Transmitters
Wireless wall-mounted switches, special transmitters, and desktop/portable controllers allow control to be adapted to the specific needs of the space and its users. Thanks to wireless communication, they can be installed on various surfaces, including glass, flammable substrates, or wet areas, even where running cables would be difficult. Any switch can be paired with any POSEIDON receiver within signal range. Control elements can therefore be placed exactly where they are needed, and their layout easily adapted to changes in floor plan or how the space is used.
Receivers
Switching, dimming, and relay receivers make it possible to control various types of luminaires and other electrical devices according to the requirements of a specific installation. A single receiver can be controlled from multiple transmitters simultaneously and can also be assigned to any number of groups. This makes it easy to create different zones and control methods and adapt them to the operation of the building. The system thus provides the flexibility needed not only during the initial installation, but also for later changes to the floor plan or the way the space is used.
Receivers for Shading
Specialized receivers make it possible to control roller shutters, blinds, and awnings according to user needs and current conditions. They support positional control and priority modes, allowing the control method to be adapted to a specific installation. In combination with weather sensors, the system can also respond to wind or rain and automatically protect shading equipment from adverse weather conditions. The result is more comfortable control, a higher level of automation, and safer operation.
Sensors
Motion sensors, occupancy sensors, lighting controllers, and temperature, humidity, and CO₂ sensors provide the system with information about current usage and conditions in the space. They can serve as an input for automatic scenes and equipment control based on actual need. The measured data can also be forwarded to a BMS system, where it can be further used for monitoring and controlling the building. Sensors thus help create a more comfortable environment and control operation more efficiently.
Interfaces
The Ethernet and USB interfaces allow the POSEIDON system to be connected to a network and managed using the POSEIDON Assistant tool. The P8 GWA DIN gateway then makes it possible to remotely monitor and control the entire installation from a single location. Remote access gives operators an overview of the system without the need to be on-site, making day-to-day management and inspection of larger installations easier.
Accessories
The POSEIDON portfolio is complemented by accessories for a reliable and flexible system installation. This includes antennas for extending the wireless communication range, power supplies, and mounting materials.
Need help choosing?
Configure the Entire Installation Clearly from One Place
POSEIDON Assistant is software for configuring and managing wireless POSEIDON installations. It allows you to prepare a project using virtual components even before the actual installation, configure individual devices, create links between them, and use the system’s advanced functions. For larger projects, the ability to copy configurations, use templates, and create links in bulk makes the work easier. You prepare the project in advance, finish the configuration on-site, and for any later changes, all components, their settings, and their links remain clearly organized within a single project.
1. Simple System Configuration
Set up the system clearly from a single location. In the POSEIDON Assistant application, you can configure individual system components, set their functions, and create links between transmitters and receivers.
2. Clear Management Even for Large Installations
Name and sort individual devices so that the project structure matches the actual installation. Navigating individual components becomes easier, so you can find the device you need to configure more quickly.
3. Advanced Functions Beyond Manual Programming
Has the customer’s requirement changed? Thanks to the clear management of components and their links, you can adjust the system settings according to the current needs of the installation, without having to start the configuration from scratch.
5. Prepare the Project Before Installation
Thanks to virtual components, you can create and prepare the project offline, without connecting to physical devices. This allows you to handle the configuration in advance and continue on-site with a ready-made project.
6. Bulk Copying of Configuration
For similar devices, you don’t have to create the configuration over and over again. You can copy settings between components and use templates to determine which parameters you want to transfer.
7. Bulk Creation of Links
Use an already prepared link as a template for other compatible components. For larger installations, this means you don’t have to create every link individually.
8. Device Search and Communication Check
The software can search for devices, but it also works with information about RF communication. A notable feature is the ability to search for receivers in the vicinity of another device via the communication route, not just in the vicinity of the connected RF interface. The route found this way can also be retained for further configuration communication.
9. Retransmission for Extended Signal Range
For supported devices, you can configure retransmission and adapt the communication path to the conditions of a specific installation.
10. Instant Visibility of Configuration Status
Clear status indicators show, for example, unsaved changes, ongoing communication, or a connection problem. During configuration, you thus get quick feedback on the status of individual components.
Learn to Work with POSEIDON Assistant Through Tutorial Videos
Practical tutorial videos will help you quickly get oriented in the application and guide you through the individual steps of configuring the POSEIDON system.
Want to see the system in action? We’d be happy to show you.
Case Study: Benefits of Luminaire Control
POSEIDON Office
This case study documents the benefits of lighting control for LED office luminaires. For a selected floor of an office building with an area of 500 m², a lighting design was prepared together with a lighting control system design for DALI LED luminaires. The POSEIDON Office control system takes into account occupancy and daylight intensity, and offers control via POSEIDON wireless wall switches.
Existing lighting: 100 pcs, fluorescent luminaires, 72 W
New lighting: 100 pcs, DALI dimmable LED luminaires, 38 W
Annual energy savings (from luminaire replacement) > 50.5% (7 MWh)
Annual energy savings (with POSEIDON control) > 75.5% (9.8 MWh)
Simple payback period ≈ 2.9 years
POSEIDON Industry
The investment costs include the POSEIDON Industry lighting control system, including a dimmable industrial LED luminaire with an integrated wireless DALI receiver.
Existing lighting: 64 pcs, fluorescent luminaires, 250 W
New lighting: 60 pcs, DALI dimmable LED luminaires, 132 W
Annual energy savings (from luminaire replacement) > 50.5% (47.19 MWh)
Annual energy savings (with POSEIDON control) > 80.5% (58.59 MWh)
Simple payback period ≈ 2.12 years
Want to see your own savings? Get in touch!
Partner Program
Become part of a network of verified partners and gain benefits that will support your business growth and customer trust.
Want to become our partner? Get in touch.
References
About Us
We are a Czech company with tradition and a personal approach. Through innovation, quality, and teamwork, we bring smart solutions to our customers.
We always strive to stay one step ahead and deliver solutions that save time, energy, and resources, because efficiency matters to us just as much as reliability. Our work is driven by enthusiasm – we enjoy what we do and are eager to keep moving forward. We are constantly looking for innovations to improve our processes and products and adapt them to customer needs. In everything we do, we place emphasis on quality and precision. And because we have ambition – the courage to pursue big goals – our vision is to be the first choice for customers for both individual and demanding projects.
We believe that combining tradition, a personal approach, and the courage to innovate is the key to delivering real value to our customers and helping them grow together with us.
FAQ
POSEIDON is a wireless system for controlling lighting and shading. Switches, portable controllers, or sensors communicate wirelessly with receivers, which in turn control devices such as luminaires or blind and shutter motors. Thanks to wireless communication, no additional communication cabling or central server is required for control. The system is therefore suitable for both new projects and the modernization of existing buildings.
POSEIDON uses the 868 MHz frequency. Compared to technologies operating at 2.4 GHz, this frequency has properties suitable for communication through obstacles, and it also does not share the same band as common Wi-Fi or Bluetooth devices. This ensures a reliable connection even where the signal has to pass through walls and other obstacles.
In open space, the wireless signal can reach hundreds of meters. Inside buildings, where walls and other obstacles stand in the signal’s way, the range is typically in the tens of meters. If a larger or more complex building needs to be covered, the system’s range can be extended using additional antennas or repeaters.
POSEIDON can be used for a handful of luminaires in a single room, or for hundreds of components across a large industrial site. The system can be expanded gradually as lighting control requirements grow.
The system’s core functions — switching, dimming, and automatic control — all operate completely offline. For normal operation, the system therefore does not require an internet connection. A gateway and network connection can be added if you want to use remote management and system monitoring.
Receivers are part of the electrical installation, so their wiring must be carried out by a qualified electrician. Wireless switches and self-powered sensors, however, do not require supply cabling — they simply need to be placed in a suitable location. This allows control and sensing components to be installed with minimal intervention in the space.
Receivers connect to existing luminaires, and wireless switches can be mounted on a wall or on furniture. There is no need to run new cable routes to the control elements or to make interventions in the walls for that purpose. The system is therefore also suitable for renovating spaces where you want to preserve the existing interior.
Basic pairing of components can be done directly using a button on the device, without a computer or any additional equipment. For more advanced setup and system management, the desktop application POSEIDON Assistant is available. In it, you can conveniently work with groups, scenes, time schedules, and other system functions.
No. All settings are stored directly in the memory of the devices and are automatically restored once power is back on.
A single switch or sensor can control multiple receivers, and a single receiver can respond to multiple control elements. If the floor plan or the way the space is used changes later on, there is no need to rewire the control cabling — you simply need to adjust the links between the components.
One solution for various types of luminaires. LED, fluorescent, halogen, and discharge light sources — you simply choose the appropriate receiver based on how they are controlled.
The system can be integrated with other platforms, incorporating lighting, shading, and other technology control into the building’s overall automation.
With POSEIDON you get not only a lighting control solution, but also a 5-year warranty and service directly from the manufacturer in Nová Paka. Whenever you need advice or service, you deal directly with us.
The payback period typically ranges from 2 to 5 years. It depends on current consumption, lighting operating hours, and the extent of automation. Based on data about your building, we will prepare a specific calculation of the expected payback period for you.
The system is available through ENIKA.CZ partners and distributors. Professional installation is carried out by qualified electrical technicians. We are happy to help you choose the right solution and find a contact for implementation.
